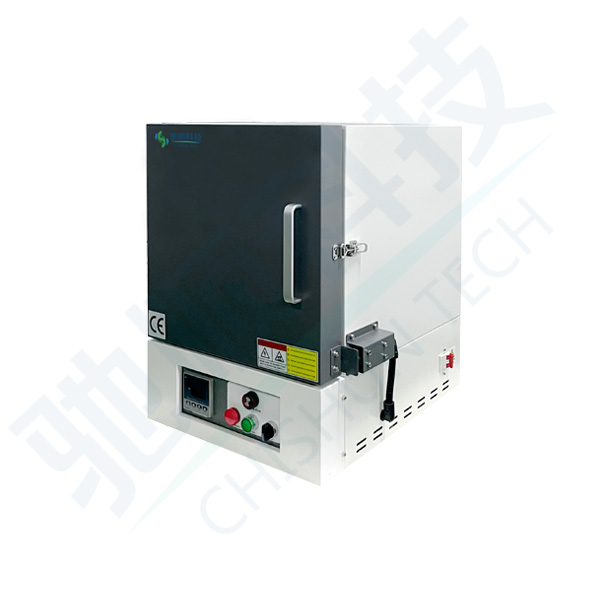

1200℃ Laboratory muffle furnace (box-type resistance furnace) is used in the sintering and heating of new materials such as metal materials, ceramic materials, nano-materials, semiconductor materials, etc. High temperature heat treatment.
Furnace Shell
1、The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and resistant to corrosion.
2、Strong metal frame shell structure, low furnace surface temperature.
3、Side-opening furnace door structure, the furnace door opens to the right, easy to operate.
Refractory Material
Multi-layer insulation design, composed of lightweight alumina ceramic fiber and high-quality insulation board backing, does not contain asbestos components, low heat loss and low energy consumption
Heating System
1、High-quality HRE spiral resistance wire heating element is safely and firmly embedded on the surface of the furnace, and is heated by free heat radiation in the furnace cavity, which is energy-saving and efficient, and has a long service life.
2、Heating on three sides (left and right sides and furnace bottom), so as to achieve good uniformity in the furnace.
3、The silicon carbide bottom plate covers and protects the bottom heating element, which has high mechanical strength, good thermal conductivity, and provides horizontal load bearing.
Temperature Control Panel
1、 PID and SSR control mode, precise temperature control.
2、Internationally standardized N-type nickel-chromium-silicon thermocouple with a temperature measurement range of 0-1300℃ and a long service life.
3、The furnace door is equipped with a door-opening power-off safety protection switch.
Program Controller
1、Advanced controllers that meet complex process requirements
2、Simple and direct operation, flexible programming
3、Programmable 30 program segments for a single curve
4、Over temperature and fault alarm, automatic safety protection
Specifications
|
Model |
BF1200-I |
BF1200-II |
BF1200-III |
BF1200-IV |
BF1200-V |
BF1200-VI |
BF1200-VII |
|
Chamber size（W xD xH）mm |
100x100x100 |
150x150x150 |
180x230x150 |
200x300x120 |
200 x300x200 |
250x300x250 |
300x500x200 |
|
Outer size（W xD xH）mm |
250 x240x350 |
430x465x620 |
460x570x660 |
480 x630x630 |
480 x630x710 |
550x635x780 |
600 x870x735 |
|
Max temperature |
1200℃ |
||||||
|
Working temperature |
1100℃ |
||||||
|
Power supply |
220V/1.2KW |
220V/2.5KW |
220V/3KW |
220V/3KW |
220V/4KW |
220V/6KW |
380V/7.5KW |
|
Heating element |
HRE Alloy resistance wire |
||||||
|
Chamber material |
Polycrystalline inorganic alumina ceramic fiber material prepared by wet vacuum filtration |
||||||
|
Temp.Precision |
±1℃ |
||||||
|
Termocouple |
N Type termocouple |
||||||
|
Temperature controller |
Intelligent microcomputer PID temperature control instrument, SSR control, PID parameter self-tuning function; programmable 30 program segments, program temperature rise, program heat preservation, program cooling |
||||||
|
Heating rate |
1-25℃/min free adjustment |
||||||
|
Furnace structure |
Furnace temperature control integrated structure |
||||||
|
Equipment protection |
Modular control, sound and light alarm signal will be sent out for over temperature and broken coupler in the working process, and the protection action will be completed automatically |
||||||
|
Safety protection |
The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators |
||||||
|
Furnace shell |
High-quality cold-rolled steel plate CNC machine tool blanking processing, after welding, grinding, polishing, phosphating, pickling, surface electrostatic spraying plastic powder |
||||||
|
Standard packing |
1. Furnace body 1 set 2. Temperature controller 1 set 3. Power cord 3 meters 4. Thermocouple 1 set 5. Manual 1 copy 6. Crucible pliers 1 set 7. High temperature gloves 1 pair |
||||||
|
Optional |
1. Optional exhaust chimney for evacuation of volatile substances 2. Optional corundum crucible, furnace floor, shed board and other kiln furniture 3. Optional material recorder for online recording of temperature curves |
||||||
|
Competitive Advantage |
1、Factory direct delivery 2、Quality assurance 3、Best price 4、Compact in size 5、Complete specifications 6、Service Assurance |
||||||
